The seal is well designed, powered by AC, black printed.

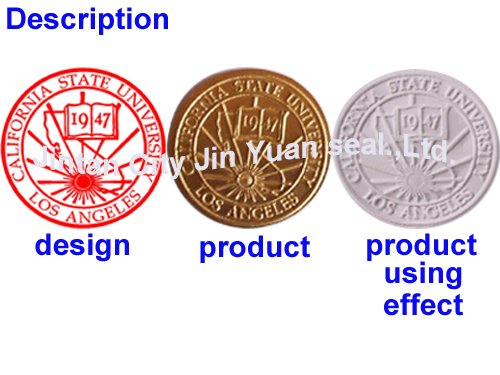

Text or picture on the seal can be customized.
1. Connect the machine with power, turn on the key switch, be ready for working when the
instruction lamp is lit.

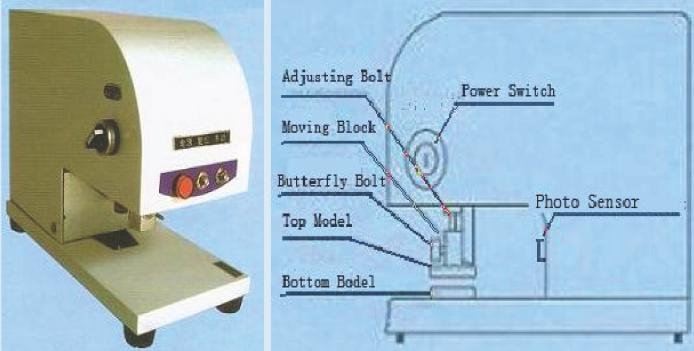

2. Put the adjusting bolt to the shortest position, loosen the butterfly bolt.
3. Paste double-faced adhesive tape to the bottom die, make it fit to the top die, hold them together, put the handle of top die into the hole of the moving block with left hand(Do not place fingers under the bottom die to prevent from being injured). And press manual operating button with right hand, the action of punching starts. The bottom part will be fixed to the base of the machine after the top part is lifted because it has been fixed into the square hole tightly.
4. Test with paper and adjust impress depth by screwing the bolt.
5. The machine maybe stuck to death because of wrong operation or the material is too thick to be pressed. So the reset button should be pressed.
6. Fix the butterfly bolt and adjusting bolt tightly after test.
